Pergola Pros Platinum
Our architectural model, and the only one built in 6063-T6 aluminium, the highest temper in the range, powder-coated in AkzoNobel and carrying a 15-year structural guarantee. On the EN 755-2 minimums for the wall thicknesses we use, T6 is rated 170 MPa proof strength against 130 for T5 — about 30% more load before the metal takes a permanent set. The louvres rotate through 100°, past vertical, with a rubber seal inside every blade. This is the model on show in Retford.
Send approximate dimensions and photographs to begin. We first prepare an initial budget estimate using current manufacturer pricing. Detailed specification, CAD drawings and the firm written quotation follow if the estimate suits your budget.
Type the size you actually want, to the centimetre — every pergola is made to your dimensions. Maximum single structure: 7 m × 6 m. Larger areas can use a multi-bay layout.
Size not listed? Request Bespoke Size
THE SHOW PERGOLA · SUTTON, RETFORD
This is the model on show in Retford.
The show pergola at our premises in Sutton, Retford is a Platinum, with sliding glass walls, LED lighting and a motorised louvred roof you can open and close yourself. Together they form the enclosed bioclimatic room. Book a time and see the posts, the blades and the finish before you commit.
St. Bartholomew’s Court, Sutton, Retford, Nottinghamshire DN22 8PL
Drag to look around. The three views are the same spot on the same day.
SIDE BY SIDE
The Platinum beside the other two.
| Specification | Gold | PlatinumFlagshipThis page | Retractable |
|---|---|---|---|
| Roof | Louvres tilt to 90° | Louvres tilt to 100°, past vertical | Louvres tilt to 85° and stack to one side, opening up to 75% of the sky |
| Post section | 150 × 150 × 2.0 mm | 150 × 150 × 2.8 mm | 200 × 200 × 3.0 mm |
| Aluminium | 6063-T5 | 6063-T6 the harder temper | 6063-T5 |
| Control | Remote, smartphone, smart home | Remote, smartphone, smart home | Remote |
| Guarantee | 10 years structural · 8 years coating · 5 years motor | 15 years structural · 10 years coating · 3 years motor | 8 years structural · 8 years coating · 3 years motor |
| Size made to your dimensions | 4 m × 6 m on four posts | Up to 7 m × 6 m maximum single structure | 4 m × 6 m |
T6 is the harder temper of the same alloy: on the EN 755-2 minimums for the wall thicknesses we use, 6063-T6 is rated 170 MPa proof and 215 MPa tensile against 130 and 175 for T5, about 30% more load before the metal takes a permanent set. Glass sliding sides, screens, lighting and heating can be included in the initial estimate and are confirmed in the detailed quotation. Every guarantee is provided by Sterling Grid Security Ltd. Guarantee terms

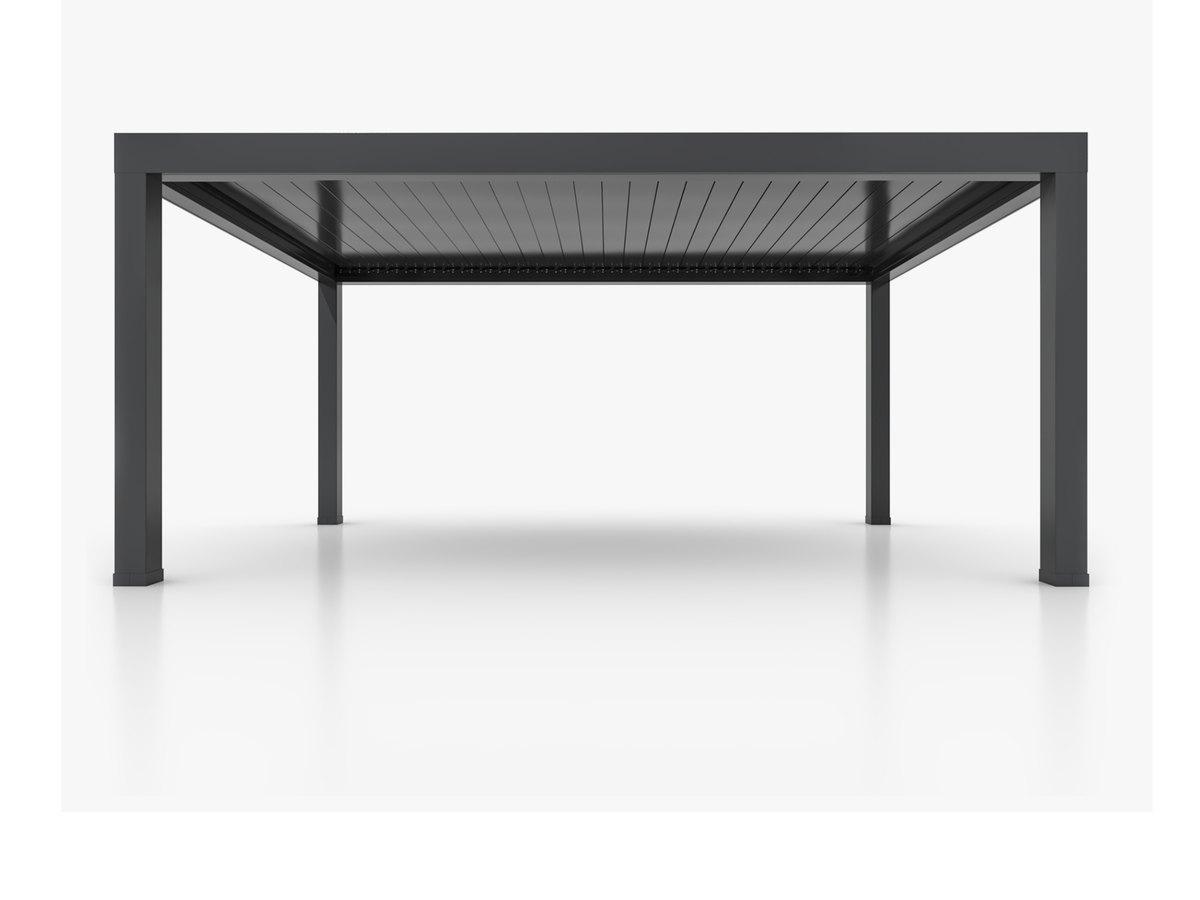

How the Platinum is built.
A motorised louvred roof: the blades turn past vertical to control sunlight, ventilation and rain, and the rubber seal inside every blade is what keeps the garden furniture underneath dry. Add sliding glass walls when the brief is an enclosed bioclimatic room.
A single Platinum structure can be made up to 7 m × 6 m, with multi-bay configurations available for larger areas. Every blade carries a rubber seal inside it, a rain shield that also stops the chatter you get from wind, and dimmable LEDs are built into the blades themselves.
| Alloy | 6063-T6 aluminium — the highest temper in the range |
|---|---|
| Post section | 150 × 150 × 2.8 mm |
| Blade | 202 × 45 × 1.8 mm, with a rubber seal inside every blade |
| Beam / gutter | 210 × 150 × 2.8 mm — the heaviest beam we supply |
| Louvre rotation | Up to 100° — past vertical |
| Largest single structure | 7 m × 6 m maximum |
| Coating | AkzoNobel powder coat |
| Motor | IP67 rated, concealed — smartphone app and remote |
| Lighting | Dimmable LED built into the blades, plus optional RGB |
Every dimension here appears on the drawings you receive before any deposit is paid.
Precision Delivery. Not Just Drop-Off.
Most pergola companies deliver to the kerb. We deliver directly to your installation site using specialist crane logistics.
HIAB Crane Delivery
We don’t just drop pallets at the kerb. Our logistics partners use truck-mounted cranes to place your pergola safely onto your prepared installation site.
Site Access Requirements
Your property should have clear access, a level hardstanding area, and a safe unloading zone for crane placement.
Delivery Safety Notice
Visible transit damage must be reported within 48 hours so our logistics partner can quickly resolve any issue.
Please describe site access clearly. Where a delivery fails for a reason within your control, we may recover our reasonable actual costs, evidenced and notified to you before redelivery is arranged. You are not charged where the failure was caused by us, by the manufacturer or by the carrier.
The Platinum, answered.
What makes the Platinum the flagship?
Is the Platinum the pergola on show in Retford?
How large can a Platinum be?
What does a Platinum cost?
THE OTHER TWO
Compare the other two.
Same construction family, a different roof. Every model is made to your dimensions. Glass sliding sides, screens, lighting and heating can be included in the initial estimate and are confirmed in the detailed quotation.
Louvred roof
The Gold
The mid-range louvred roof. Louvres to 90°, remote and app control, 8-year coating guarantee.
Explore Model
Retracting roof
The Retractable
Not just tilted. Stacked away. The louvres slide to one side and open up to 75% of the sky, on 200 mm posts.
Explore ModelBUILDERS · LANDSCAPERS · INSTALLERS
Have a client project to price?
Send the approximate dimensions, site photographs and postcode. We supply the made-to-measure pergola, project drawings, foundation specification and HIAB delivery to the prepared site. You keep the client relationship and arrange the groundworks, assembly and electrical connection.
Request an initial estimate.
Send approximate sizes and photographs. We aim to return an initial budget estimate within a few working days. If it suits your budget, we then prepare the detailed specification, CAD drawings and firm written quotation.
